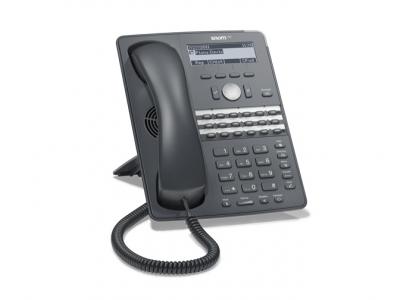

Snom 760 4-Line SIP based IP phone
The snom 760 phone addresses office users that require excellent audio, PBX-style keys, and rich visual information. It combines a state-of-the-art
hardware with the proven snom SIP software.
The snom 760 not only provides you with comprehensive IP telephone functionality, but also a whole range of extra features which really put it in a class of its own compared to similar products.
The new audio subsystem was designed for excellent performance in office environments. It supports a large range of codecs, wideband audio, handset and hands-free operation according to TIA-920 standard. The specially designed grips which hold and release the receiver compliment overall user-friendliness by eliminating the noise normally associated with lifting and replacing the receiver.
The new foot stand allows two positions for the device (33° and 55° angle). It can be setup and changed easily without tools. The snom 760 comes in a dark grey color that fi ts the typical office dress code and makes usage traces less obvious than lighter colors.
Highlights
- High-resolution 3.5”color display
- 12 LED function keys
- LED function keys
- Wideband audio
- Hands-free operation
- Power over Ethernet (PoE)
- WLAN ready
- VLAN
- 2 x USB (Type A)
- 2 Gigabit LAN ports
General Features
- Weight: approx. 920g (690g without foot-stand)
- Dimensions: approx. (mm) 238x190x40 (LxWxD) w/o footstand, 238x190x220 (LxWxD) with footstand
- Certifications: FCC Class B, CE Mark
- Safety: IEC 60950-1:2007
- Power over Ethernet/PoE: IEEE 802.3af, Klasse 2
- Power: Input voltage 5V DC, max. 10 W (adapter not included) (1)
- Average power consumption with PoE: Approx. 2.2–3.4 W (without USB peripherals)
- Ethernet: 2 x IEEE 802.3/1 Gigabit switch
- 1 x LAN, 1 x PC: RJ 45
- USB ports: 2 x type A, USB 2.0 Hi/Full/Low Speed-compatible host interface
- Handset: 4P4C connector
- Headset: 4P4C connector or wireless via USB adapter(2) or snom EHS Advanced(3)
- Color: Anthracite gray
User Interface
- High-resolution color display
- 8. ...
