IP PBX for SMBs

The new compact, feature rich PBX for every-day use!

MyPBX is a standalone embedded hybrid PBX for small businesses and remote branch offices of larger organizations (2-300 users per site). MyPBX also offers a hybrid solution (a combination of VoIP applications using legacy telecom equipment) alternative for enterprises who are not yet ready to migrate to a complete VoIP solution.

---

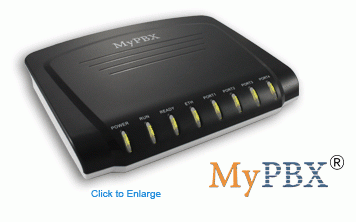

MyPBX-SOHO

Specification:

Users: 32
Concurrent Calls(Max): 15
Voicemail: 3000min

Interface:
Up to 4 Analog Ports (FXO/FXS)
Up to 4 BRI Ports
Flash: 512 MB Onboard Flash
RAM: 64 MB Onboard RAM
LAN: 1 (10/100Mbps)

Size: 193x153x30 mm
Weight: 500g
Power Supply: AC 100~240V/50~60Hz (DC 12V, 1A)

Protocol: SIP(RFC3261)
Transport Protocol: UDP,TCP,TLS
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261,
H263,H263p, H264 ,MPEG4.
DTMF: Inband, RFC2833, SIP INFO
LED: Red for FXO, Orange for BRI, Green for FXS.
Network: Firewall, VLAN, DDNS, QoS, DHCP Server
Multiple Languages Support:
Chinese, English, French, Hebrew, Italian, Portuguese, Russian,
Spanish, Turkish

Features:

Auto Provision
Blind Transfer
BLF Support
Blacklist
CDR (Call Detail Records)
Call Forward
Call Parking
Call Pickup
Call Routing
Call Transfer
Call Waiting
Caller ID
Conference
Define Office Time
DISA (Direct Inward System Access)
DIDs
Distinctive Ringtone
DND (Do Not Disturb)
Firewall
Follow Me
IVR (Interactive Voice Response)
Intercom/Zone Intercom
Multi-language Prompt
Music On Hold
Music On Transfer
One touch record
PIN User ( PIN Code Control)
Paging/Zone Paging
Queue
Ring Group
Route by Caller ID
Skype Integration (Skype Connect)
Speed Dial
Three Way Calling
Voicemail
Voicemail to Email
Voicemail Forwarding
Web Based Control Panel
Spy functions (Normal Spy, Whisper Spy, Barge Spy)

---

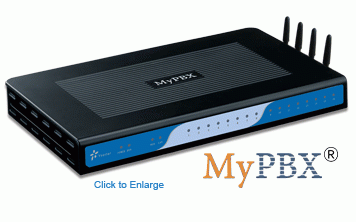

MyPBX-Standard

Specification:

Users: 100
Concurrent Calls: 25
Voicemail: 3000min

Interface:
Up to 16 Analog Ports (FXO/FXS)
Up to 4 GSM Ports(Quad-Band GSM/GPRS850/900/1800/1900MHz)
Up to 4 UMTS Ports(UMTS 900/2100MHz or 850/2100MHZ or 850/1900MHZ)
Up to 8 BRI Ports
Flash: 512 MB Onboard Flash
RAM: 128 MB Onboard RAM
LAN: 1 (10/100Mbps)
WAN: 1 (10/100Mbps)

Size: 280x175x33 mm
Weight: 700g
Power Supply: AC 100~240V/50~60Hz(DC 12V, 5A)

Protocol: SIP(RFC3261), IAX2
Transport Protocol: UDP,TCP,TLS,SRTP
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261,
H263,H263p, H264 ,MPEG4. ...
