Zycoo IP PBX for carrier class

NewProductsReleased:

1. IP PBX: Standard 1U Rack-Mountable X86 Platform Based
ZX100-A16 IPPBX platform with max 16 analog ports is based on x86 architecture and designed for Medium Businesses application
and it is preloaded with the latest stable version of the Elastix Appliance Software.That is not only the full feature IPPBX,
but also a IPPBX hardware platform for developer to install their own software easily.

Applications:

• Call Center
• Hosted Service
• FAX System
• IVR System

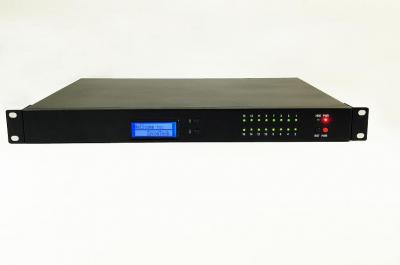

Pannel:

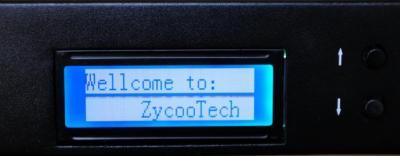

• 32*128 dot-martix LCD
• 16 analog ports indicators
• 1 HDD working status indicator
• 1 Power working status indicator

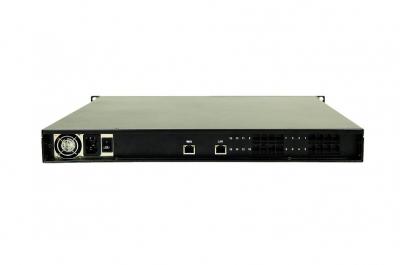

Interface:

• 1 X Power Jack, input 110~240V
• 2 X RJ45,WAN(100M), LAN(1000M)
• 16 X RJ11 can be combined with FXS and FXO

Hardware:

• CPU: ATOM N270, 1.6GMHz
• RAM: 2 GB DDR2 RAM
• Storage: 160G mobile hard disk drive
• PSU: 300W Power Supply with industry standard
• Dimensions: W: 465mm, H:44.5mm, D:370mm
• Rackmountable: Comes with accesories

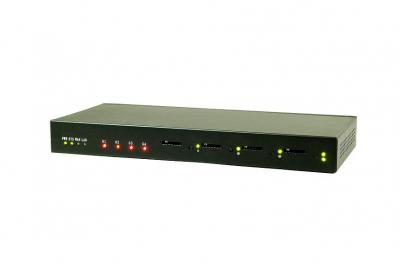

2. GSM IP PBX

• 1. Targeting for SOHO user and SMB market.
• 2. Attractive black iron case with frosted surface.
• 3. Embedded VOIP PBX server based on Asterisk.
• 4. Support PPPOE/VPN/DDNS/NAT/SSH.

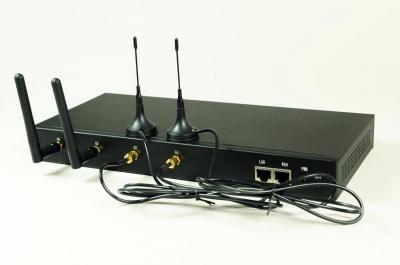

• 5. 4 GSM Antennas,GSM/EDGE 850/900/1800/1900MHz
• 6. Unlimited extension register.
• 7. Support 30 simultaneous calls.
• 8. Easy GUI for configuration.
• 9. Long time test assure stable performance.
• 10. Easy for lan/wan network organization.
• 11. Rich function in one small box.
• 12. High performance of network security.

ZycooIPPBXLine:

• ZPX Series: ZPX04/08
• ZX100 Series: ZX100-A16
• ZX50 Series: ZX50-G4/ ZX50-AG41/ ZX50-AG42
