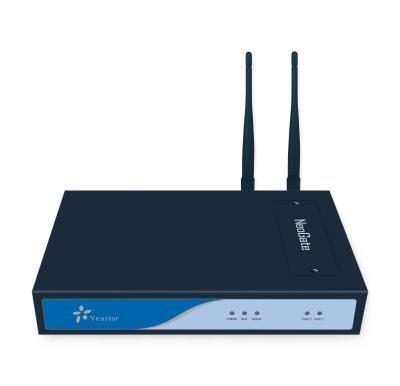

NeoGate TG200 - VoIP GSM Gateway(VoIP-GSM)

Designed for maximum cost reduction

NeoGate TG200 is a modular VoIP GSM/UMTS gateway with 1/2 channels providing GSM /UMTS network connectivity for soft switches, and IP-PBXs. It supports two-way communication: VoIP to GSM/UMTS and GSM/UMTS to VoIP. Thus the calls costs could be significantly reduced by VoIP or GSM network.

Benefits

1) Cost Savings – Cost-Savings on phone calls between mobiles or to PSTN.
2) Back up – Should the landline network go down, GSM can be used as a cost-effective backup.
3) Easy to install – IP device with Web based management interface.
4) Easy to integrate.

Specification:

Number of GSM channels (Max): 2
Network type
UMTS: 900/2100MHz; 850/2100MHz; 850/1900MHz;
GSM: 850/900/1800/1900MHz
Protocol: SIP (RFC3261),IAX2
Transport Protocol: UDP,TCP,TLS,SRTP
DTMF: RFC2833, SIP INFO, In-band
Codec: G.711 a/u-law, G.726, G.729 A, GSM, Speex.

LAN: 1 (10/100Mbps)
Network: DHCP, Firewall, VLAN, DDNS, OpenVPN.

Size: 200x140x35mm
Power Supply: AC 100~240V/50~60Hz (DC 12V, 1A)

Features:

SIP proxy Registrar for IP phones included
Incoming call routing
Outgoing call routing
SMS sending and receiving (WEB interface)
Call Back
LCR (Least Cost Routing)
Top voice quality (EFR super sound)
Simple web based configuration
Easy to integrate / Easy to install

---

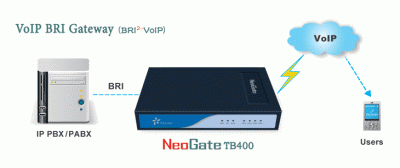

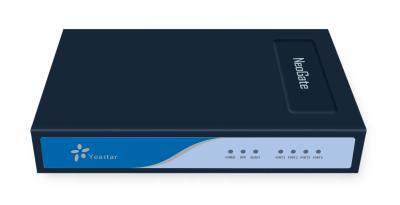

NeoGate TB400 - VoIP BRI Gateway(BRI-VoIP)

Smooth communication between BRI and VoIP network

NeoGate TB400 is a compact reliable standalone VoIP BRI gateway (BRI-VoIP/VoIP-BRI) offering the company using ISDN BRI lines an easy, cost-effective and flexible integration into any VoIP system or enabling any IP PBX to be connected to the public ISDN network at an affordable price. It could either provide VoIP access for your legacy PABX or extend an ISDN-BRI line of a PBX to a remote site over VoIP.

Benefits

1) Access to VoIP network
2) Cost Saving - Cost-Saving on phone calls via VoIP.
3) Easy to install - IP device with Web based management interface.
4) Easy to integrate.

Specification:

BRI Port: 4 (RJ45)
Protocol: SIP (RFC3261), IAX2
Transport Protocol: UDP,TCP,TLS,SRTP.
DTMF: RFC2833, SIP INFO, In-band
Codec: G.711 a/u-law, G.726, G.729 A, GSM, Speex.

Network: DHCP, Firewall, VLAN, DDNS, OpenVPN.

Size: 200x140x35mm
Power Supply: AC 100~240V/50~60Hz (DC 12V, 1A)

Features:

BRI ports can be used as TE/NT mode
SIP proxy Registrar for IP phones included
LCR (Least Cost Routing)
Simple web based configuration
Easy to integrate
Easy to install

---

SiSkyEE - Business Skype Solution

100% software based, Generate up to 30 Skype trunks!

Nowadays, Skype is very popular and you may found many customers are Skype users. ...
