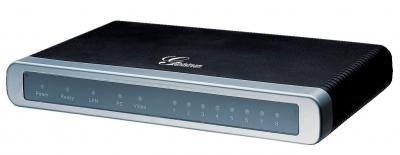

GXW-4108 FXO Analog Gateway

The GXW series offers the small enterprise, SOHO, remote offices and multi-location enterprises a cost-effective, easy to deploy VoIP FXO analog gateway.

Designed and tested for full interoperability with leading IP-PBXs, Softswitches and most SIP-based environments, the GXW technology ensures manageability, a simple configuration, superb voice and video quality and feature rich functionality. The GXW series also offers a video surveillance port and is the only small business gateway in the industry that provides a video surveillance option. GXW Series IP Gateway is based on open industry standards.

Features

• 8-FXO-port media gateways
• Video surveillance port
• Two RJ-45 ports (switched or routed)
• Supports PSTN/PBX analog trunk lines and SIP trunk interface
• Multiple SIP accounts and profiles (3 per system)

Benefits

• Interconnect remote location legacy phone lines across the Internet
• Web management for easy configuration and installation
• Provides fax,voice, video surveillance, and modem support
• Video surveillance port to enhance premise security
• Can be stand-alone gateway for IP Communications

Interfaces

• Voice Port
  • 8ports
• Telephone Interface
  • FXO, RJ11
• Network Interface
  • Dual 10/100 mbps RJ45 prots
• LED Indicators
  • Power, Video, Network, and Line LEDs
• On/Off Switch

Voice, Fax, Modem, Video Surveillance

• Voice Over Packet Capabilities
  • G.168 Line Echo Cancellation
  • Dynamic Jitter Buffer
  • Modem detection & auto-switch to G.711
• Voice Compression
  • G.711
  • G.723
  • G.729A/B
  • GSM
  • G.726 (pending)
• Video Surveillance
  • real-time base line H.264 (CIF resolution, up to 30fps)
• DHCP Client/Server
  • NAT Router or switched mode
• Fax over IP
  • T.38 compliant Group 3 Fax Relay up to 14.4kpbs
  • Auto switch to G.711 for Fax Pass-Through (pending)
• Qos
  • Diffserve
  • TOS
  • 802. ...
