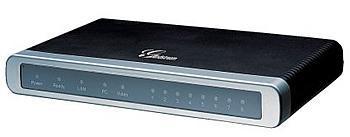

The GXW series offers the small enterprise, SOHO, remote offices and multi-location enterprises a cost-effective, easy to deploy VoIP FXS analog gateway.

Designed and tested for full interoperability with leading IP-PBXs, Softswitches and most SIP-based environments, the GXW technology ensures manageability, a simple configuration, and superb voice quality. GXW Series IP Gateway is based on open industry standards.

• 8 FXS analog port gateways
• Two RJ-45 ports (switched or routed)
• TFTP and HTTP firmware upgrade support
• Supports Audio Codecs: G711, G723, G729 and GSM
• T.38 compliant
• Web management for easy configuration and installation

Interfaces

• Telephone Interfaces
  • 8 RJ11 FXS ports
• Network Interfaces
  • 10M/100Mbps
  • Dual RJ45 ports
• Admin Console Interface
  • RS232 Serial Port
• LED Indicators
  • Power
  • Network
  • Line LEDs

Voice, Fax, Modem

• Voice Over Packet Capabilities
  • G.168 complaing Echo Cancellation
  • Dynamic Jitter Buffer
  • Modem detection
  • Auto-switch to G.711
• PSTN Fail-over Life Line
  • PSTN Failover on power failure
• Voice Compression
  • G.711
  • G.723
  • G.726 (40/32/24/16)
  • G.729A/B/E
  • G.728
  • iiBC
• DHCP Client Server
  • Nat Router or Switched Mode
• Fax over IP
  • T.38 complaint Group 3 Fax Relay up to 14.4kpbs
  • Auto-switch to G.711 for Fax Pass-through (pending)
• QoS
  • Diffserve
  • TOS
  • 802. ...
