NeoGate TE100 - VoIP PRI Gateway(VoIP-E1/T1/J1)

Bridge the gap between E1/T1/J1 and VoIP networks

NeoGate TE100 is a single port VoIP E1/ T1 /J1 gateway (VoIP to E1/ T1 /J1, and E1/ T1 /J1 to VoIP) that supports up to 30 concurrent calls. It’s designed to bridge the gap between E1/ T1 /J1 and VoIP networks. TE100 offers SMBs cost effective additions to an legacy telephone system to bring the true benefits of VoIP. Integrating TE100 into an existing network will allow for inexpensive communication via SIP trunking. Also, it could connect VoIP systems with E1/T1/J1 service from legacy carriers.

Benefits

1) Cost-effective Call Routing
2) Easy-to-navigate GUI
3) Simple Installation
4) Easy to integrate
5) Low power consumption for your green office

Specification:

E1/T1/J1 Port: 1 (Support PRI, MFC R2, SS7)
Protocol: SIP (RFC3261)
Transport Protocol: UDP,TCP,TLS,SRTP.
DTMF: RFC2833, SIP INFO, In-band
Codec: G.711 a/u-law, G.722, G.726, G.729 A, GSM.
LAN: 10/100 Mbps
WAN: 10/100 Mbps

Size: 213x160x44mm
Power Supply: AC 100~240V,50~60Hz (DC 12V, 1A)

Features:

Trunk Support
Call Routing Rules
Automatic appending and stripping of digits to dialed numbers
Caller ID name and number support
FAX support
Blacklist
Firewall
DDNS Support
Backup And Restore
Easy to install

Applications

1) Connect legacy PBX systems to VoIP services
2) Connect legacy PBX systems to remote sites over private VoIP links
3) Connect IP PBX systems to legacy TDM services
4) Phased transition from Legacy PBX to IP PBX

---

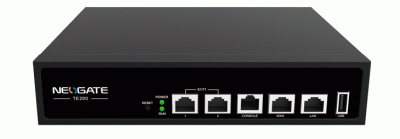

NeoGate TE200 - VoIP PRI Gateway(VoIP-E1/T1/J1)

Bridge the gap between E1/T1/J1 and VoIP networks

NeoGate TE200 is a dual port VoIP E1/ T1 /J1 gateway (VoIP to E1/ T1 /J1, and E1/ T1 /J1 to VoIP) that supports up to 60 concurrent calls. It’s designed to bridge the gap between E1/ T1 /J1 and VoIP networks. TE200 offers SMBs cost effective additions to an legacy telephone system to bring the true benefits of VoIP. Integrating TE200 into an existing network will allow for inexpensive communication via SIP trunking. Also, it could connect VoIP systems with E1/T1/J1 service from legacy carriers.

Benefits

1) Cost-effective Call Routing
2) Easy-to-navigate GUI
3) Simple Installation
4) Easy to integrate
5) Low power consumption for your green office

Specification:

E1/T1/J1 Port: 2 (Support PRI, MFC R2, SS7)
Protocol: SIP (RFC3261), IAX2
Transport Protocol: UDP,TCP,TLS,SRTP.
DTMF: RFC2833, SIP INFO, In-band
Codec: G.711 a/u-law, G.722, G.726, G.729 A, GSM.
LAN: 10/100 Mbps
WAN: 10/100 Mbps

Size: 213x160x44mm
Power Supply: AC 100~240V,50~60Hz (DC 12V, 1A)

Features:

Trunk Support
Call Routing Rules
Automatic appending and stripping of digits to dialed numbers
Caller ID name and number support
FAX support
Blacklist
Firewall
DDNS Support
Backup And Restore
Easy to install

Applications

1) Connect legacy PBX systems to VoIP services
2) Connect legacy PBX systems to remote sites over private VoIP links
3) Connect IP PBX systems to legacy TDM services
4) Phased transition from Legacy PBX to IP PBX

---

NeoGate TB400 - VoIP BRI Gateway(BRI-VoIP)

Flexible routing for your PBX

NeoGate TB400 - VoIP BRI Gateway(BRI-VoIP) is a full-featured VoIP gateway. ...
