VoIP Analog Gateway Series—NeoGate TA Series

NeoGate TA400 - Analog VoIP Gateway

Multi-Port FXS Gateway

NeoGate TA Analog VoIP Gateways are cutting-edge products that connect legacy telephones, fax machines and PBX systems with IP telephony networks and IP-based PBX systems. Featuring rich functionalities and easy configuration, NeoGate TA is ideal for small and medium enterprises that wish to integrate a traditional phone system into IP-based system. NeoGate TA helps them to preserve previous investment on legacy telephone system and reduce communication costs significantly with the true benefits of VoIP.

Highlights

1) 4 FXS ports
2) Fully compliant with SIP and IAX2
3) Flexible calling rules
4) Reliable fax performance with T.38
5) Provides high-quality voice compression with industry standard codecs
6) Line echo cancellation for 32, 64 or 128 ms echo delays
7) Web-based GUI for easy configuration and management
8) Excellent interoperability with a wide range of legacy and IP equipment

Specification:

Number of Telephony Ports: 4
Phone Interface: 4 x RJ11 FXS ports
Protocol: SIP (RFC3261), IAX2
Transport Protocol: UDP, TCP, TLS, SRTP
DTMF: RFC2833, SIP INFO, In-band
Codec: G.711 a/u-law, G.722, G.726, G.729a, GSM,
ADPCM, Speex
Echo Cancellation: ITU-T G.168 LEC
FAX over IP: T.38 and pass-through
Signalling: Kewl Start, Loop Start
Caller ID: BELL202, ETSI (V23), NTT (V23-Japan), and
DTMF-based CID
Disconnect Method: Busy Tone, Polarity Reversal

LAN: 1 (10/100Mbps)
Network: Static IP, DHCP Client, Firewall, VLAN, DDNS,
QoS, OpenVPN
NAT Traversal: Static NAT, STUN

Size: 200 (L) mm × 137 (W) mm × 25.6 (H) mm
Power Supply:12V 1.5A

Operation Range: 0° to 50°C, 32° to 122° F
Storage Range: -20° to 65°C, 4° to 149° F
Humidity: 10-90% non-condensing

Features:

3-way Conference
Attended Transfer
Black List
Blind Transfer
Call Detail Record (CDR)
Caller ID Display or Block
Call Forward: No Answer, Busy, All
Call Waiting
Call Status Display
Do Not Disturb
IP Blacklist
Network Attack Alert
Paging
RADIUS Accounting & Login
Real Open API Protocol (Based on Asterisk)
Voice Prompt
SIP Server and SIP Trunk supported
SIP Peer Mode supported
SNMP
TR069
System Logs
Web based configuration

---

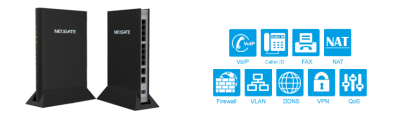

NeoGate TA800 - Analog VoIP Gateway

Multi-Port FXS Gateway

NeoGate TA Analog VoIP Gateways are cutting-edge products that connect legacy telephones, fax machines and PBX systems with IP telephony networks and IP-based PBX systems. Featuring rich functionalities and easy configuration, NeoGate TA is ideal for small and medium enterprises that wish to integrate a traditional phone system into IP-based system. NeoGate TA helps them to preserve previous investment on legacy telephone system and reduce communication costs significantly with the true benefits of VoIP.

Highlights

1) 8 FXS ports
2) Fully compliant with SIP and IAX2
3) Flexible calling rules
4) Reliable fax performance with T. ...
