IP PBX for SMBs

More Features, Less Cost!

MyPBX U300 boasts an embedded PRI (E1/T1/J1) port with up to 30 lines and 2 FXS ports in the one compact system, providing higher density trunking for offices using E1 PRI signaling. This system supports up to 100 users and 30 concurrent calls. Also it could be used as a gateway to legacy PBX systems in applications.

Specification:

Users: 100
Concurrent Calls: 30
Voicemail: Default 3000min

Interface:
One E1/T1/J1 ports (Support PRI,MFC R2,SS7), 2 FXS Ports
One RS232 Port
LAN: 1 (10/100Mbps)
WAN: 1 (10/100Mbps)
USB: 1 (USB2.0)
Audio In/Out: Supported

Size: 213x160x44 mm (1U half-width)
Weight: 1.2kg
Power Supply: AC 100-240V 50/60Hz 0.5A MAX

SIP Protocol: SIP(RFC3261), IAX2
Transport Protocol: UDP,TCP,TLS,SRTP
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261,
H263,H263p, H264 ,MPEG4.
DTMF: Inband, RFC2833, SIP INFO
Echo Cancellation: Supported
Network: Static IP, PPPoE, DHCP, Firewall, VLAN, DDNS, QoS,
DHCP Server,OpenVPN
Multiple Languages Support:
Chinese, Dutch, English, French, German, Hebrew, Korean, Italian,
Polish,Portuguese, Romanian, Russian, Spanish, Thai, Turkish

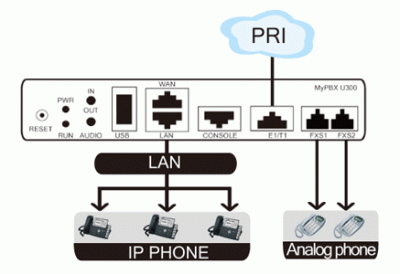

Flow Chart

Features:

Attend Transfer
Blind Transfer
BLF Support
Blacklist
Callback
CDR (Call Detail Records)
Call Forward
Call Parking
Call Pickup
Call Routing
Call Transfer
Call Waiting
Caller ID
Conference
Define Office Time
DDNS
Dial by Name
DISA (Direct Inward System Access)
DIDs
Distinctive Ringtone
DND (Do Not Disturb)
FAX (T.38)
Firewall
Follow Me
IVR (Interactive Voice Response)
Intercom/Zone Intercom
Mobility Extension
Multi-language Prompt
Music On Hold
Music On Transfer
One touch record
OpenVPN
Phone Provisioning
PIN User ( PIN Code Control)
Paging/Zone Paging
PPPoE
Queue
Redundancy
Ring Group
Route by Caller ID
Skype Integration (Skype Connect)
SMS to Mail/Mail to SMS
Speed Dial
Three Way Calling
Voicemail
Voicemail to Email
Voicemail Forwarding
Web Based Control Panel
Spy functions (Normal Spy, Whisper Spy, Barge Spy)
